FLAT TYPE MOTOR MICRO AC GEARED MOTOR

The L-type hollow flat brushless DC geared motor is a highly efficient and compact drive unit that integrates a hollow shaft, ultra-thin profile, brushless technology, and precision gear reduction mechanism. Specifically designed for space-constrained applications such as robotics and automated equipment, it delivers high-precision motion control and high-torque power output.

Availability:

Quantity:



Inquire Add to Basket

Model:
G2BLD&2GFS
Brand:
GPG

Product Description

Product Description

GPG AC compact GFS hollow shaft flat gearhead motors

High output torque at low output speed

Single phase(110v & 230v) and three phase(230v & 380v & 415v)

Reversible motors

Single phase induction motors with external capacitor,are able to be operated in these applications where required for rapid reversals of rotation.The motors can be equipped with a special brake which temporarily blocks the rotor allowing the inversion of the rotation.

Motors with brake

These motors are equipped with an electromagnetic brake.

It is useful in applications where the load holding is required,but with motor stopped as no power supply,and where short downtime is needed.

Speed reducer

Gear reduction ratios from 3:1 to 1800：1

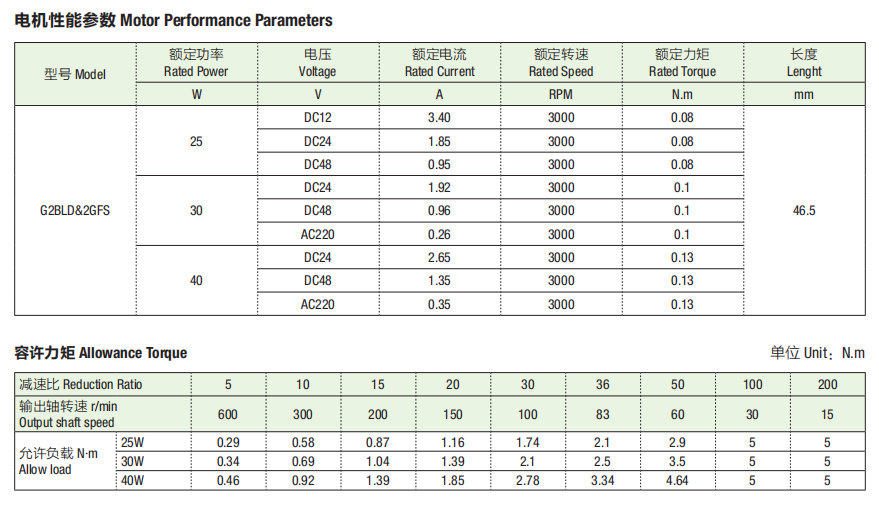

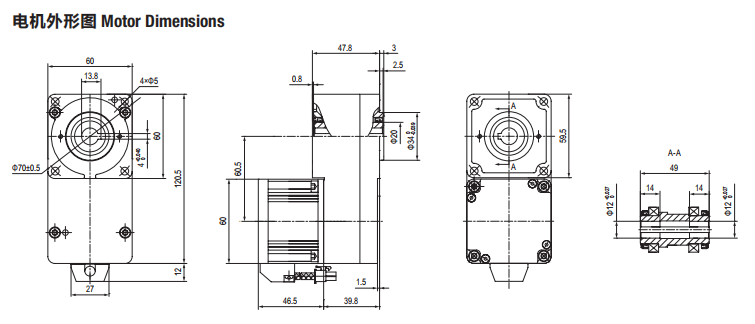

Product parameters

1747631260387

1747631297065

compact AC gear motor Miniature AC Geared Motor Low-Profile AC Gearmotor Micro-Sized AC Geared Motor Slim AC Gear Reduction Motor
