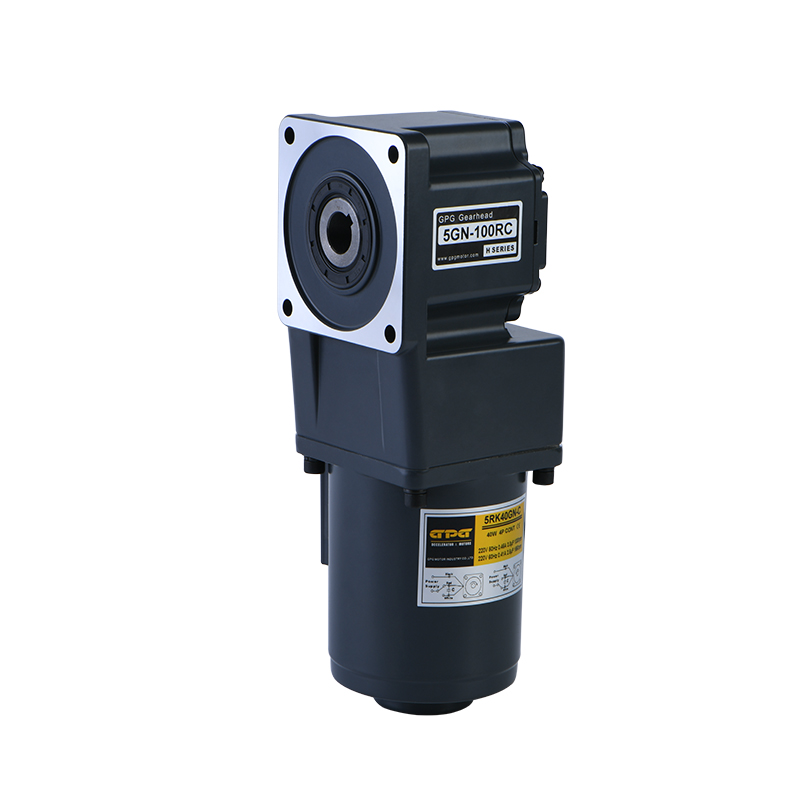

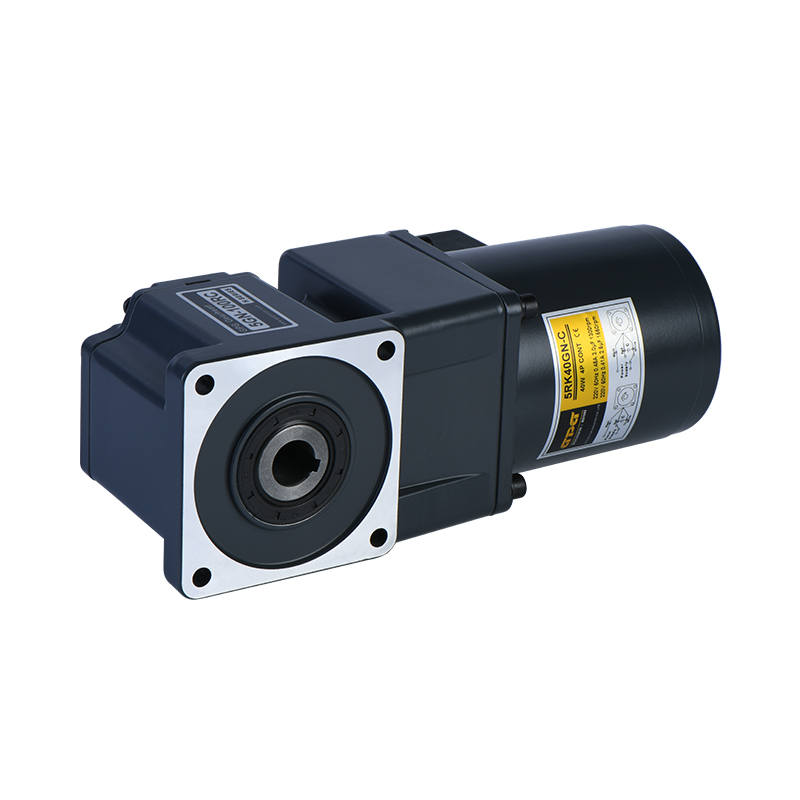

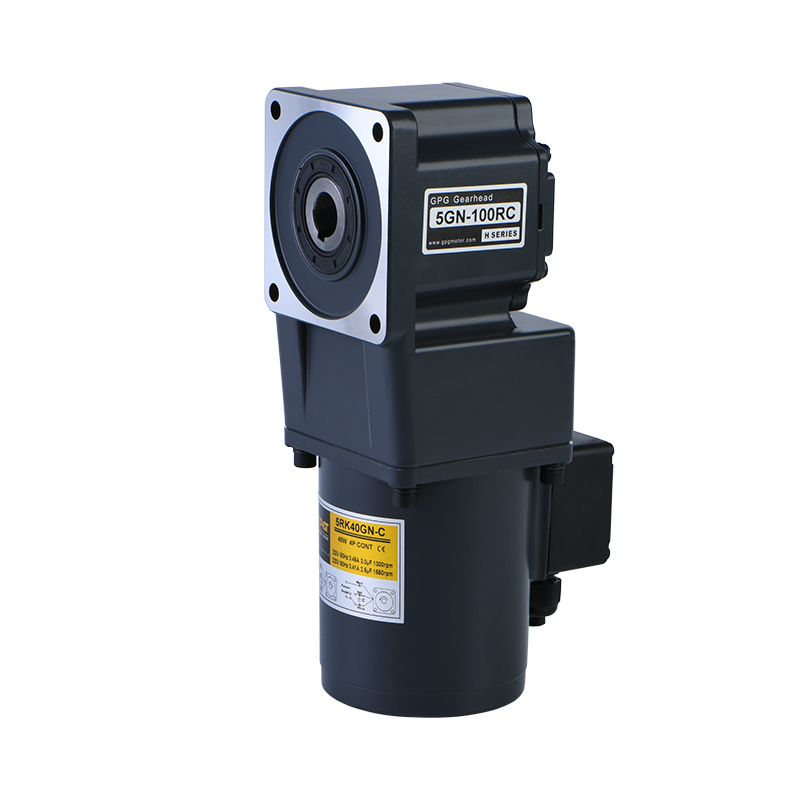

RIGHT ANGLE GEARBOX MOTOR LOW NOISE PACKAGING MACHINERY MOTOR CUSTOM GEAR RATIO

Our right-angle gear motors (25-250W power, 3-1800 speed reduction ratio) feature customizable parameters, expandable functionality, and high-temperature resistant design with international certifications, ideal for demanding industrial applications. Contact us for quotes and tailored solutions.
Availability:
Quantity:
Inquire Add to Basket

  • 5I(R)K40/5GN60RC

  • GPG

Product Description

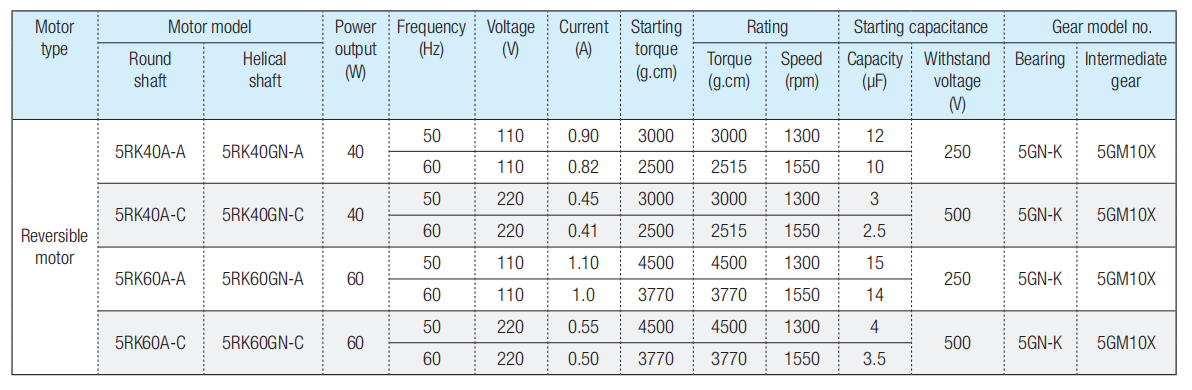

Motor Characteristics Table

1747012119961

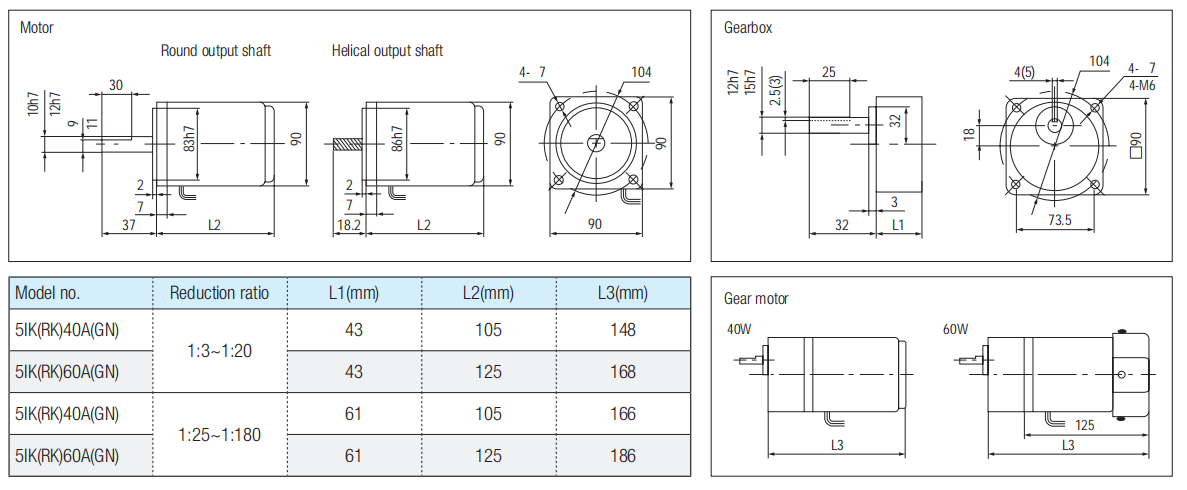

Outline Dimension

1747012180215

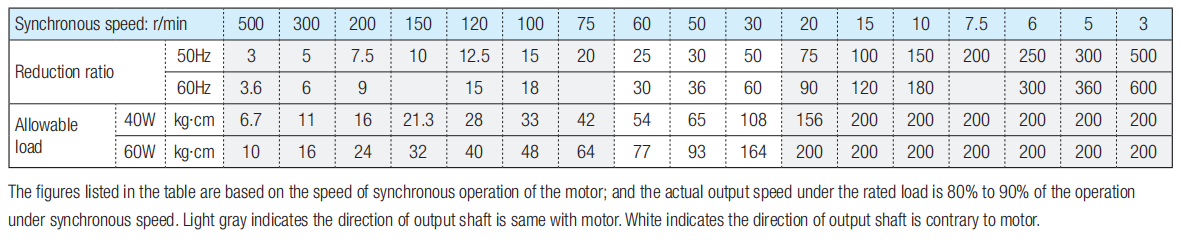

Torque Table (Kg-cm)

1747012222932

Certificate：
