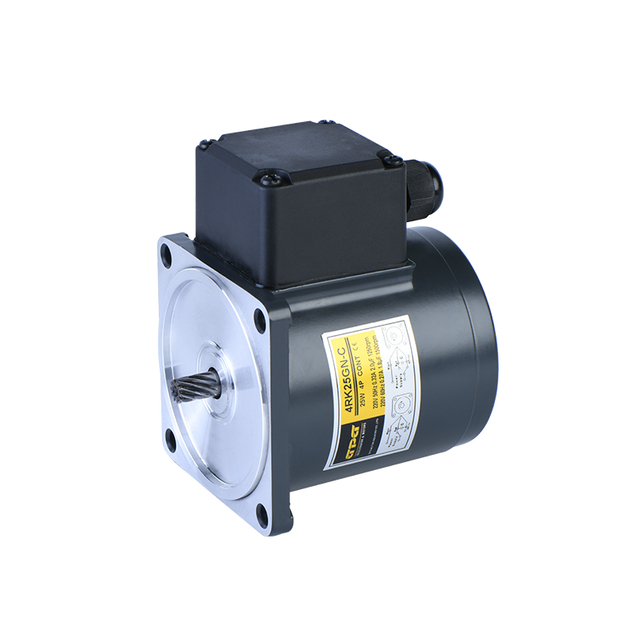

AC gear motors are essential components in countless industrial and commercial systems. Their role in delivering controlled torque and speed makes them invaluable in conveyors, pumps, manufacturing equipment, and more. However, even the most robust AC gear motor is susceptible to wear and failure over time. Identifying symptoms early can prevent costly downtime and irreversible damage. In this comprehensive guide, we’ll explore the most common signs of AC gear motor failure, why they occur, and how you can respond effectively.
Unusual sounds are often the first red flag of an impending failure in an AC gear motor. While all mechanical equipment generates some level of operational noise, any sudden increase or change in the type of noise—such as grinding, whining, buzzing, or knocking—warrants immediate attention.
Grinding or Rattling: May suggest worn or damaged gears within the gearbox.
Buzzing or Humming: Often linked to electrical problems like a failing capacitor or shorted windings.
Knocking or Clunking: Could indicate a misaligned or loose internal component.
Persistent noise that grows louder over time is a strong indicator of progressive wear. Left unchecked, these noises can evolve into more serious mechanical failures, affecting not just the motor but the entire system it drives.
If your AC gear motor becomes unusually hot to the touch, it might be experiencing thermal stress. Motors are designed to operate within specific temperature ranges. Exceeding these thresholds can degrade insulation, damage windings, and ultimately lead to motor burnout.
Overloaded Application: The motor is working harder than its rated capacity.
Poor Ventilation: Dust or debris blocking the airways can impair cooling.
Electrical Faults: A voltage imbalance or short circuit can generate excessive heat.
In thermal imaging or manual checks, if the housing remains consistently hot during standard operation, failure may be imminent. Continuous overheating drastically shortens the lifespan of the motor.
Performance drops in an AC gear motor are usually gradual but can be detected early with consistent monitoring. If your machinery is slower, less responsive, or cannot carry loads as before, it might be due to internal degradation.
Low Speed: May indicate damaged bearings or reduced gearbox efficiency.
Inconsistent Torque: Suggests gear slippage or internal wear.
Stalling Under Load: Often caused by weakened electrical windings or misalignment.
An early diagnosis could be as simple as using a torque meter to compare current performance against the motor's original specs. If discrepancies are significant, it’s time for a professional inspection.
A healthy AC gear motor runs smoothly. Excessive or irregular vibration during operation is a clear sign of mechanical issues. In industrial settings, where precision is crucial, such vibrations can impact not just the motor but connected equipment as well.
Misaligned Shafts: Can cause repetitive oscillations.
Worn Bearings: Lead to off-balance rotation.
Gear Imbalance: Results in inconsistent output torque and rattling.
Ignoring vibrations could eventually damage mounts, loosen fittings, or even dislodge wiring. Vibration analysis tools are useful in pinpointing the source before severe damage occurs.
Modern AC gear motors often feature integrated control systems that issue fault codes when something goes wrong. Even in analog systems, electrical symptoms like circuit tripping or irregular current draw serve as important indicators.
Tripped Breakers or Blown Fuses: Suggest internal short circuits or insulation failure.
Unusual Voltage Readings: Can point to phase imbalances.
Frequent Restarting: Indicates instability in the motor’s operational control system.
These signs often precede total failure. A multimeter can help diagnose whether the fault lies in the motor windings or the external control system. Addressing electrical symptoms early ensures the longevity of both the motor and the power system supporting it.
Finally, visual inspection remains one of the simplest yet most effective methods of identifying issues. Oil leakage, burn marks, or physical damage can offer immediate clues.
| Visual Symptom | Possible Cause | Urgency Level |
|---|---|---|
| Oil or Grease Leakage | Worn seals, cracked casing | High |
| Burn Marks | Electrical short, overheating | Critical |
| Cracked Mounts | Excessive vibration, improper handling | Medium-High |
Routine inspections should be scheduled as part of preventive maintenance programs to catch these signs before they escalate.
Yes, depending on the extent and nature of the failure. Issues like worn bearings, failed capacitors, or degraded windings can often be repaired. However, gearbox-related damage may require full replacement.
With proper maintenance, an AC gear motor can last 7–15 years. This varies based on application load, operating environment, and build quality.
Regular inspections, lubrication schedules, load monitoring, and timely replacement of worn components are key. Using the motor within its rated capacity is also critical.
Recognizing the symptoms of AC gear motor failure isn’t just about listening for strange noises or checking for oil leaks—it's about building a predictive mindset. From overheating and vibrations to performance drops and electrical anomalies, each sign tells a part of the story. The earlier these symptoms are identified, the more cost-effective your response will be. Implementing a structured monitoring and maintenance routine not only protects your investment but ensures operational continuity.
