Views: 173 Author: Site Editor Publish Time: 2025-07-07 Origin: Site

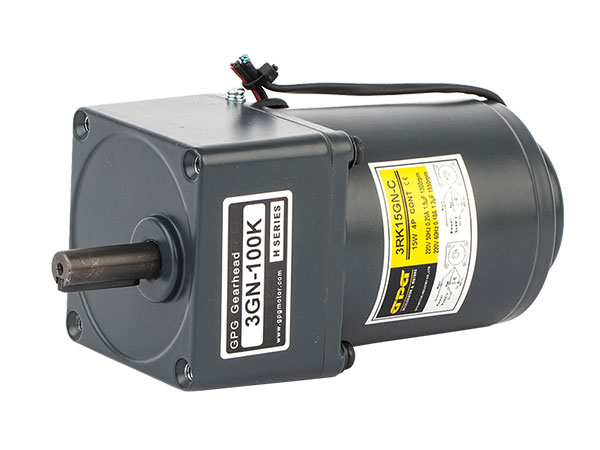

A Micro AC gear motor is a compact electric motor that operates on alternating current (AC) and integrates a gear reduction system. This type of motor is specifically designed for applications that require precise torque control and low-speed performance. Unlike DC gear motors, Micro AC gear motors do not require an external power conversion device, making them more straightforward in applications where AC power is readily available.
These motors typically consist of a small AC motor—usually single-phase or three-phase—coupled with a set of gears (spur, worm, or planetary) that reduce speed and increase torque. The gear configuration is selected based on the intended application and desired performance characteristics. The result is a powerful, efficient, and compact device ideal for automation systems, small machinery, vending machines, robotic arms, medical devices, and even household appliances.
The biggest appeal of Micro AC gear motors lies in their simplicity, reliability, and energy efficiency. They're built to run continuously and deliver consistent output over long periods. Because of their durability and low maintenance requirements, these motors are widely used in industrial and commercial settings where long-term performance is key.
Understanding the working principle of a Micro AC gear motor requires examining both the AC motor and the gear system. When an AC voltage is supplied, the motor converts electrical energy into mechanical rotational motion. The gears then translate this high-speed, low-torque rotation into low-speed, high-torque output, which is necessary for precise motion control in small machinery.
In single-phase motors, capacitors or shaded poles help initiate the motor's rotation, while three-phase motors rely on phase differences in the power supply. Once the rotor begins spinning, the gear train modifies the motor speed and multiplies the torque.
Here’s a simplified breakdown of how it works:
| Component | Function |
|---|---|
| Stator & Rotor | Generate electromagnetic rotation using AC power |
| Gearbox | Reduces speed and increases torque |
| Output Shaft | Transfers mechanical power to the load |
| Housing | Protects internal components and ensures safe operation |
The integrated gear system is essential, especially in applications requiring high holding torque at low speeds. For example, a vending machine’s rotary mechanism needs slow but powerful motion, which is precisely what a Micro AC gear motor delivers.
Micro AC gear motors find broad application across industries, particularly where compact size, high torque, and consistent power are required. These industries include:
Automation and Robotics: Used in robotic arms for joint actuation and controlled movements.
Medical Equipment: Powering devices like peristaltic pumps and automated beds.
Vending and Packaging Machines: Driving levers and conveyors with high precision.
Home Appliances: Found in automatic window openers, curtain systems, and even some coffee machines.
What makes them especially suitable is their ability to perform quietly and efficiently, which is crucial in environments where noise reduction is important, such as hospitals or customer-facing devices.
Moreover, Micro AC gear motors are often chosen for their low cost of ownership. With minimal maintenance, robust design, and long operational life, they offer a great return on investment, especially in high-cycle usage scenarios.
The value proposition of a Micro AC gear motor extends beyond just size and power. Here are some key benefits:
Despite their small footprint, these motors deliver impressive torque thanks to their integrated gear systems. This makes them ideal for space-constrained environments.
Designed to withstand continuous operation, Micro AC gear motors offer excellent durability and minimal maintenance. The use of metal gears and sealed bearings enhances their lifespan.
Compared to other motor types, such as servo or stepper motors, Micro AC gear motors offer a more economical solution without sacrificing performance in many use cases.
These motors can be customized for speed, torque, and mounting options, making them highly adaptable for different applications.
AC motors are generally more efficient at converting electrical energy into mechanical energy, and the gear reduction helps minimize power loss while maximizing torque.
Yes, they can. VFDs allow control over the motor's speed and torque characteristics. When paired with a Micro AC gear motor, this enables precise control of motion in automation systems.
Most models are reversible, allowing them to rotate in both clockwise and counterclockwise directions. However, the gear configuration may sometimes limit the direction depending on the internal structure.
Micro AC gear motors are generally low maintenance. Regular inspection for gear lubrication, bearing wear, and electrical connections is recommended, but they are designed to operate for long periods without significant upkeep.
With proper installation and occasional inspection, these motors can last over 10,000 operational hours. Their sealed and rugged construction helps them resist dust, moisture, and mechanical wear.
Selecting the appropriate Micro AC gear motor involves a detailed understanding of the application's requirements. Here are the key factors to consider:
| Parameter | Considerations |
|---|---|
| Voltage & Frequency | Match with your AC power supply (e.g., 110V/60Hz or 220V/50Hz) |
| Required Torque | Determine the output torque necessary for your load |
| Speed (RPM) | Choose based on the speed range your application needs |
| Gear Ratio | Affects both speed and torque – higher ratio = lower speed, higher torque |
| Mounting Orientation | Vertical, horizontal, or custom mounting arrangements |
| Environmental Conditions | Dust, moisture, and temperature may require special sealing or coatings |
Choosing the wrong specifications could result in performance issues, overheating, or premature wear. Therefore, detailed calculations or consulting with a specialist is always recommended.
A Micro AC gear motor stands out as a highly efficient, durable, and cost-effective solution for low-speed, high-torque requirements across multiple industries. With their small size and powerful output, these motors meet the growing demand for compact automation in both industrial and consumer applications.
When reliability, simplicity, and low operational cost are at the forefront of your design or system, Micro AC gear motors are well worth the consideration. By understanding their working principles, benefits, and application range, you can make a well-informed decision tailored to your specific needs.
