Designing industrial machinery requires precision at every power transmission stage. Specifying the wrong motor setup leads to premature mechanical failure through under-sizing or wastes capital and space through over-sizing. Finding the exact balance of torque, environmental protection, and electrical compatibility remains a challenge for many engineers. A successful selection process must align your baseline torque requirements, spatial constraints, and available power infrastructure while maximizing overall gearhead life. Without a rigorous evaluation framework, you risk unexpected downtime and compromised system performance. We created this definitive, engineering-led guide to evaluate, size, and source the perfect drive system for your specific application. You will learn how to calculate hidden mechanical stressors, decode gear technology efficiency, and avoid common integration traps when specifying a robust drive unit.
Verify that a single-phase setup fits your control needs; complex variable speed requirements often require a 3-phase motor with a VFD.
Output torque calculation must account for gear efficiency (often assumed around 80%, but varying wildly by gear type).
Neglecting hidden mechanical stressors—specifically Overhung Load (OHL) and low Service Factors (SF)—is the leading cause of premature bearing and gear failure.
Opting for pre-engineered gear motor assemblies mitigates the risk of "motor-limited" or "gear-limited" system mismatches.

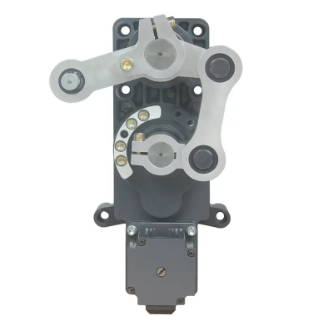

You must first confirm your electrical and mechanical baseline. These units excel in continuous-duty, fixed-speed applications. They are optimal when only standard AC wall power is available. Common applications include packaging machines, agricultural conveyors, and standard industrial mixers. They offer exceptional reliability for steady-state operations without complex control infrastructure. If you simply need a robust drive to turn on and run continuously, a single-phase gear motor is highly effective.
Engineers often fall into a specific speed control trap. Do not attempt to use simple voltage regulators to dynamically control the speed of a heavy-load AC unit. Forums and engineering communities frequently highlight failures where designers try to use basic foot pedals to manage heavy machinery. Lowering the voltage strips the motor of its torque. This causes severe inefficiency and creates an immediate stalling risk under load.
Examine your application carefully for advanced requirements. Do you need precise, dynamic variable speed control? Does your machine require zero-speed load holding? Will you integrate complex external analog signaling like 0-10V or 4-20mA? If you answer yes to any of these, pivot your evaluation. You will need a 3-phase motor paired with a Variable Frequency Drive (VFD). Trying to force simple AC configurations into dynamic motion control scenarios usually ends in equipment failure.
Sizing requires precise calculation across five distinct engineering categories. Skipping any of these parameters introduces system vulnerability.
Load and Torque Requirements
You must differentiate between starting torque and running torque. High-inertia loads demand a motor rated specifically for starting torque. Continuous operation ratings alone will fail during startup. Always use the standard output torque formula:Output Torque = Motor Torque (Tm) × Gear Ratio (R) × Gear Efficiency (Eff)
Speed Requirements
Define your absolute minimum and maximum RPM. You must also account for acceleration and deceleration rates. Rapid stopping requires different mechanical tolerances than gradual deceleration.
Duty Cycle & Thermal Limits
Clarify the difference between continuous operation and frequent start/stop applications. Frequent stops generate excessive heat. This requires higher duty-cycle ratings. Follow this engineering rule of thumb: Every 10°C increase in operating temperature can halve the life of your motor insulation and gear lubricant.
Operational Environment
Evaluate specific IP rating needs. Base this on your exposure to dust, moisture, or washdown environments. A chemical plant requires drastically different environmental protection than a standard factory floor.
Electrical Specifications
Audit your voltage and frequency limits. Most importantly, verify your starting current versus running current. You must ensure compatibility with standard motor controllers and existing facility wiring.
Sizing Parameter | Key Calculation / Verification Focus | Primary Risk if Ignored |
|---|---|---|
Torque | Formula integration of Gear Ratio and Efficiency | Inability to move high-inertia loads at startup |
Speed | Acceleration/Deceleration bounds | Mechanical shearing during rapid stops |
Thermal Limits | Frequency of starts/stops per hour | Insulation degradation and lubricant breakdown |
Environment | IP Rating requirements (e.g., IP55 vs IP69K) | Internal corrosion or short-circuiting |
Electrical | Starting current capacity check | Tripped breakers or melted controller contacts |
Choosing the correct internal gear geometry directly dictates system efficiency, heat generation, and footprint. Helical and bevel gears deliver exceptional efficiency, typically operating in the 94–96% range. This high efficiency makes them ideal for continuous heavy-duty use. They drastically reduce energy consumption and minimize heat generation. Because less energy is lost to friction, you can often allow for smaller motor sizing compared to other gear types.
Worm gears present a different engineering trade-off. They offer lower efficiency, usually ranging between 50–90%. This naturally leads to higher heat generation during operation. However, they run significantly quieter than helical configurations. They are also far more cost-effective when you require high reduction ratios in a compact space.
Worm gears also offer a unique mechanical advantage known as the "Self-Locking" phenomenon. When you use gear ratios greater than 20:1 in right-angle worm gears, the system typically cannot be back-driven. The physics of the steep gear angle prevents the output shaft from turning the motor backward. This acts as a natural safety mechanism for lifting and hoisting applications, preventing loads from free-falling when power is removed.
Engineers often secure the correct speed and torque but fail to account for applied mechanical stress. Service Factor (SF) measures how well a system handles operational overload. You calculate Service Factor as:
Service Factor = (Gearbox Rated Torque / Motor Rated Torque) × Gear Ratio
Application benchmarks dictate your required SF. Light loads, such as small fans or simple conveyors, can survive on an SF of approximately 1.0. These environments produce minimal shock. High-shock and heavy-impact applications operate differently. Rock crushers, heavy stamping presses, and robust agitators demand an SF of 3.0 or higher. A low SF in a high-shock environment guarantees shattered gear teeth.
Overhung Load (OHL) is equally destructive if mismanaged. OHL is the perpendicular force applied to the output shaft beyond the outermost bearing. Tight pulleys, sprockets, and heavy drive belts generate this force. Excessive OHL acts as a lever against the internal bearings.
You can apply a simple, actionable mitigation strategy during design. Mount all external drive components as close to the gearhead housing as possible. Sliding the pulley closer to the bearing reduces the lever arm length. This directly minimizes shaft bending, drastically lowers bearing strain, and prevents premature mechanical failure.
Procurement choices dictate operational reliability. Separately sourcing a motor and a gear reducer introduces significant mismatch risk. You often end up with a "motor-limited" system. In this scenario, the gearbox is massive and underutilized, while the motor struggles to generate enough torque. Alternatively, you create a "gear-limited" system. Here, an oversized motor easily overwhelms the reducer, eventually stripping the gears during a power spike.
Pre-engineered solutions eliminate this fundamental mismatch. Opting for OEM-integrated units removes mathematical guesswork. The manufacturer engineers the system to guarantee perfect internal alignment. They also provide verified performance curves detailing exact speed, torque, and efficiency mappings for the combined unit.
Mounting options also benefit from integrated designs. Pre-engineered systems often feature hollow bore designs. You can pair these with shrink disks to achieve a zero-backlash installation. This direct machine integration removes the need for intermediate couplings, saving space and reducing potential points of mechanical failure.
Specify your drive system by anchoring your decisions in concrete mathematical limits rather than estimations. Base your final selection on matching the manufacturer's precise performance curve to your exact calculated starting torque. Verify your Service Factor aligns directly with the actual shock-load reality of your factory floor to prevent shattered components. Gather your data from the 5-point checklist outlined above. Take these verified metrics and consult with a manufacturer’s application engineer or utilize 3D sizing software before requesting your final quote.
A: Yes, but it requires specific wiring configurations. Reversible single-phase motors typically rely on switching the polarity of the starting winding relative to the main winding. However, unlike 3-phase setups that reverse instantly by swapping two leads, single-phase units often require coming to a complete stop before reversing to avoid electrical damage.
A: Holding brakes should always be mounted on the high-speed shaft, which is the motor side. Installing the brake here allows it to leverage the mechanical advantage of the gear ratio. This means a much smaller, less expensive brake can securely hold a massive load connected to the output shaft.
A: Oil generally offers a superior lifespan for continuous-duty applications due to better heat dissipation and constant flow. However, semi-fluid grease is highly recommended for non-standard mounting orientations, such as having the output shaft facing upward. Grease stays in place better and prevents destructive leakage past the shaft seals.
