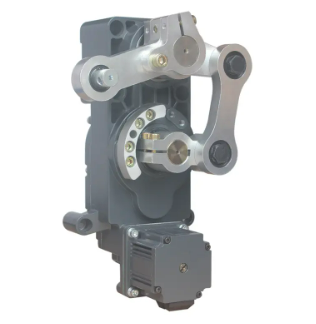

Unplanned downtime caused by failing drive systems directly impacts production schedules. It heavily drives up your daily operational costs. A single-phase gear motor serves as a crucial workhorse in scenarios lacking three-phase power. However, its unique starting mechanisms and tight integration of electrical and mechanical components make troubleshooting incredibly complex. Maintenance teams often resort to basic guesswork instead of methodical testing.
This article provides a systematic, evidence-based diagnostic framework for engineers and maintenance professionals. We move beyond simple assumptions to help you identify exact failure points quickly. By isolating electrical faults from mechanical wear, you can accurately evaluate equipment damage. Applying strict repair-versus-replace thresholds will then help your facility restore operations faster. You will also learn how to specify more resilient replacement units for the future.
Symptom-Based Diagnostics: A motor that hums but requires a manual spin to start typically indicates a failed capacitor, whereas internal grounding requires megohmmeter verification (values <1 megaohm).
Mechanical Integrity: Gear and bearing failures are frequently symptoms of operational stressors, such as ignored duty cycles or improper safety factor calculations (ideally mapped to a 1.2–1.5 margin).
The Economic Threshold: From an operational expenditure perspective, micro-motors (under 1/8 HP) or standard units older than 10 years are generally more cost-effective to replace than repair.
Preventative Scaling: Most recurring issues can be mitigated by right-sizing the motor, matching IP ratings to environmental realities, and adhering to strict lubrication schedules.
Electrical components dictate the reliability of your drive system. We must carefully dissect the components unique to single-phase operation to find the root cause of frequent breakdowns.
Insulation breakdown occurs primarily due to thermal degradation. High operating temperatures bake the protective enamel on the copper windings. The enamel becomes brittle and cracks over time. Moisture ingress further weakens this critical dielectric barrier. Mechanical abrasion during the manufacturing or rewinding process also introduces micro-scratches. These microscopic defects eventually cascade into massive electrical shorts.
Your testing protocol must evolve beyond basic tools. Standard multimeters can easily identify basic open circuits. However, identifying early-stage insulation breakdown requires specialized equipment. You must use a high-voltage megohmmeter. Readings falling below 1 megaohm clearly indicate compromised dielectric strength. This low reading confirms an imminent short circuit.
Best Practice: Always perform a baseline megohmmeter test before commissioning a new motor. Document the initial resistance values for future comparison.
Common Mistake: Never assume a motor is electrically sound just because a standard multimeter shows continuity. Continuity does not equal insulation health.
Split-phase designs rely heavily on centrifugal and thermal switches. The start winding must disconnect precisely at 70% to 80% of operating speed. If the switch mechanisms stick due to dirt or wear, they leave the start winding fully energized. Stuck switches lead to rapid overheating and catastrophic coil failure.
Capacitors in any single-phase gear motor have finite lifespans. Their degradation often presents invisibly. The internal electrolyte gradually dries out over years of heavy use. You will rarely see physical bulging or leaking on the exterior casing. Instead, the capacitance value silently drops.
You can perform a simple diagnostic reality check in the field. Suppose a motor hums upon receiving power but refuses to turn. You then spin the shaft freely by hand, and it ramps up to speed. In this scenario, the run winding is likely functional. The capacitor or the start circuit has clearly failed.
Safety Note: Always discharge capacitors prior to handling them. They retain residual high-voltage charges even after you disconnect the main power supply.
The physical transmission of power creates immense mechanical stress. Addressing these common failure points extends the operational life of your equipment significantly.
Continuous overloading pushes the unit far beyond its rated torque capacity. Lack of proper lubrication creates severe metal-on-metal friction. Shock loads send destructive kinetic force directly through the transmission. These three factors primarily cause gear wear and surface tooth pitting.
Symptoms manifest quite clearly during routine inspections. You will notice excessive localized heat radiating from the gearbox casing. Technicians often find shiny metallic debris suspended in the lubricant. You might also measure a significant drop in output torque. Backlash increases noticeably as the gear teeth wear down.
Operating temperatures fluctuate continuously during standard production cycles. These fluctuations cause thermal expansion across all metallic components. Perfectly aligned shafts experience microscopic drift as the casing heats and cools. This drift introduces asymmetric radial stress on the bearings.
We can identify these issues through distinct vibration signatures. Misalignment and failing planetary bearings present high-frequency vibrations early on. These vibrations escalate into audible grinding noises. Eventually, they cause catastrophic mechanical binding.
Consider the typical progression of bearing failure:
Thermal expansion shifts the true center of the output shaft.
The uneven load distribution breaks down the microscopic oil film inside the bearing.
Metal-to-metal contact generates microscopic spalling on the bearing races.
Vibration amplitudes multiply, leading to total bearing seizure.
Application mismatch accelerates failure rapidly. You must understand how your operating environment impacts internal motor health.
Engineers often miscalculate overload capacity. Manufacturers design overload capacity for momentary torque spikes. They do not intend it for sustained operation. Operating beyond the calculated duty cycle leads to cumulative thermal stress. This stress breaks down winding insulation and destroys gear teeth.
We recommend right-sizing solutions to prevent recurring thermal failures. Replacement units should incorporate a strict safety factor. Aim for a 1.2 to 1.5 margin against the peak anticipated loads. This safety margin absorbs unexpected jams or heavy startups effortlessly.
Industrial environments present severe ingress vectors. Fine dust acts as a harsh abrasive. It destroys protective shaft seals and infiltrates bearings. Moisture penetrates metal casings and ruins delicate electrical insulation. Both vectors drastically reduce motor lifespan.
Selecting the appropriate IP rating is completely non-negotiable. You must evaluate your environment objectively. Specify IP65 or IP66 ratings for general outdoor applications. Use IP69 for high-pressure washdown environments. Food and beverage processing facilities strictly require this higher standard to survive daily chemical cleaning.
Best Practice: Inspect shaft seals monthly if the motor operates in a heavy particulate environment like a cement plant or paper mill.
Common Mistake: Relying on a standard IP54 motor in an area subjected to direct liquid sprays. It will fail prematurely due to internal corrosion.
A structured standard operating procedure ensures rapid field assessment. Stop swapping parts blindly and follow a logical testing sequence.
Modern diagnostics rely heavily on non-invasive technology. Thermal imaging allows you to safely identify localized hotspots on the gear housing. You can scan the motor casing without shutting down the production line. This reveals bearing friction and electrical overloading instantly.
Vibration analysis establishes a critical performance baseline. You can detect early-stage bearing wear using vibration pens. This catches shaft misalignment weeks before it cascades into catastrophic gear failure.
Use the following matrix to guide your maintenance technicians through standard symptom resolution.
Observed Symptom | Components to Check | Recommended Action |
|---|---|---|
Overheating | Duty cycle compliance, ambient temperature, cooling fan blockage. | Reduce physical load, clear ventilation vents, upgrade cooling mechanism. |
Excessive Vibration/Noise | Shaft alignment, bearing integrity, foundation mounting bolts. | Re-align via laser tools, replace worn bearings, install rubber dampeners. |
Frequent Tripping/Power Loss | Multimeter/Megohmmeter for winding shorts, inspect wiring for corrosion. | Replace compromised wiring, re-insulate connections, or replace the entire unit. |
Hums but Won't Spin | Start capacitor, centrifugal switch, mechanical binding. | Discharge and test capacitor. Clean switch contacts. Verify shaft rotates freely. |
Procurement and maintenance managers need a reliable evaluation framework. Not every failed motor deserves a trip to the rewind shop.
Standard industry economics dictate clear thresholds for maintenance teams. We utilize the 10-Year / 1-HP Rule. Single-phase motors older than 10 years generally cost more to repair than to replace. The same logic applies to any unit rated at 1 HP or below. The labor hours required to properly rewind, bake, and rebuild these units outpace the purchase price of a modern equivalent.
Micro-motor replacement follows an even stricter guideline. For fractional horsepower units, especially those under 1/8 HP, repair attempts are entirely economically unviable. Direct replacement represents the optimal path. It maximizes facility uptime and guarantees a fresh warranty period.
When replacing a failed unit, do not automatically default to an identical model. If the original failure was premature, the application requires a robust upgrade. Evaluate your collected failure data carefully. You might need a higher IP rating to combat moisture. You may need to switch to a synthetic high-shock lubricant to prevent gear pitting. You might simply need an increased torque safety margin.
Vendor reliability plays a huge role in facility uptime. Partner with manufacturers who provide transparent duty-cycle ratings. Demand verifiable testing data before purchasing. Seek out engineering support to assist with custom load sizing. A correctly specified single-phase gear motor pays for itself through years of uninterrupted service.
Single-phase gear motor failures are rarely a complete mystery. They represent the predictable result of electrical component fatigue, heavy mechanical friction, or severe environmental mismatch. By understanding how capacitors degrade, why thermal expansion impacts bearings, and how duty cycles dictate lifespan, you regain control over your equipment.
You must shift your maintenance approach from reactive firefighting to proactive specification. Implement baseline vibration testing immediately. Enforce strict lubrication intervals across your facility. Use historical failure data to right-size all future motor replacements appropriately.
Take action today by evaluating your current drive systems. Contact a dedicated drive technology specialist to assess your exact load requirements. They will help you specify a highly resilient gear motor engineered specifically for your precise operational realities.
A: Standard industrial environments require visual and thermal checks every 3–6 months. You should monitor surface temperatures and listen for abnormal bearing noises. For high-stress applications or harsh environments, continuous vibration monitoring is highly recommended to catch microscopic failures early.
A: While individual models vary, a standard best practice requires an initial oil change after the first 100 hours of break-in operation. You should follow this with regular changes every 2,000 hours. Utilize a heavy-duty industrial gear oil, such as a 460# medium-load synthetic, unless the unit is lifetime-lubricated.
A: A standard multimeter can easily detect basic open circuits or complete electrical shorts by measuring simple resistance. However, it cannot accurately detect early-stage insulation degradation. Spotting hidden dielectric breakdowns requires applying high voltage using a specialized megohmmeter.
